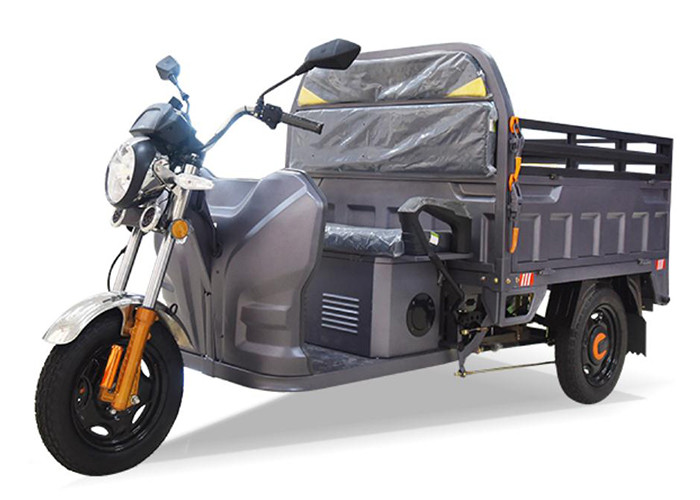

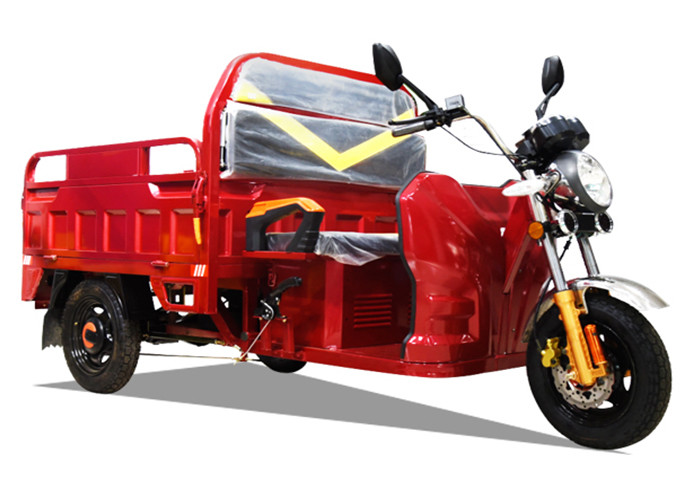

45Ah Battery 25km/H Electric Cargo Tricycle
45Ah Battery 25km/H Electric Cargo Tricycle
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: CHINA
Brand Name: FORWARD
Certification: EEC
Model Number: JB II
High Light:

gas powered 3 wheel trikes


3 wheel motorized tricycle

Payment & Shipping Terms
Packaging Details: 6 or 20 pcs / 20GP , 16 or 45pcs/40HQ
Delivery Time: within 30 working days upon receipt of payment
Payment Terms: T/T, L/C
Supply Ability: 3000 sets per month
Dimension(L*W*H): 2640*1175*1345mm
Motor: 60V1000W L=650mm Differential Motor
Loading Capacity: 300 Kg
Range Per Charge: 50 Km
Maximum Speed: 25 Km/h
Battery: 45Ah
Product Description

EU Approvval Electric Cargo Tricycles Electric Loader Electric Truck


Max speed:


60V45A1000W 24tube


60V1000W Differential Motor



One-piece leg guard
Molding formed with high strength


Rear turning indicators
Fashionable, pratical and economic

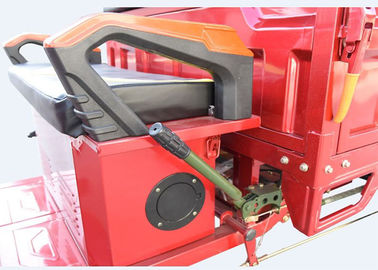

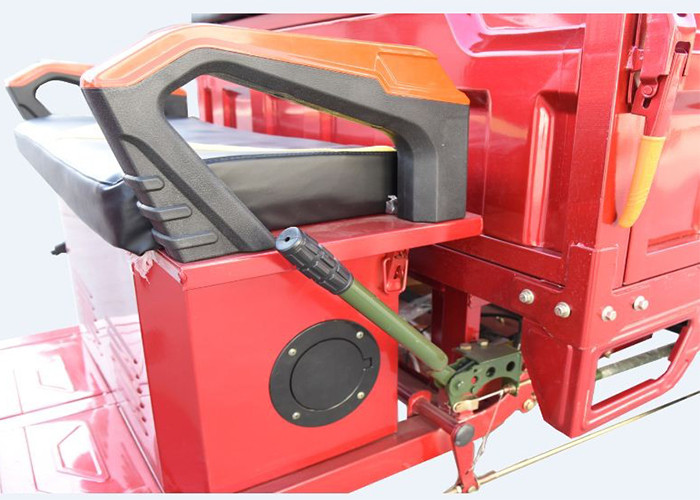

Unfoldable backrest
Can be put down as a comfortable seat in case to take a passen


Overall Dim (mm) 2640*1175*1345
Cargo box size (mm) 1300*1100*330
Weight(Without battery/kg) 220
Motor 60V1000W L=650mm Differential motor
Controller 60V45A1000W
Loading capacity/kg 300
Front/rear tire 3.50-12/3.75-12
Brake system front: disc/rear: drum
Charging time(H) 8
Range per charge/km 50
Grade ability 11°
Battery 60V45AH
Container Capacity 45 pcs CKD/40'HQ
Front Fork φ37 hydraulic
Rear suspension 50*105 leaf spring
Rear axle 1:8.8/1:22.6 intergral rear axle
Maximum speed (km/h) 25
Engerey Comsumption per hundred kms (kw/h) 5
